Timescales: 2-3 Weeks
This plan would provide a layout that demonstrates the deliverability of a proposed development, taking into account constraints and opportunities from existing site conditions. This can be included within a Vision Document for site promotion or a Design and Access Statement (DAS).

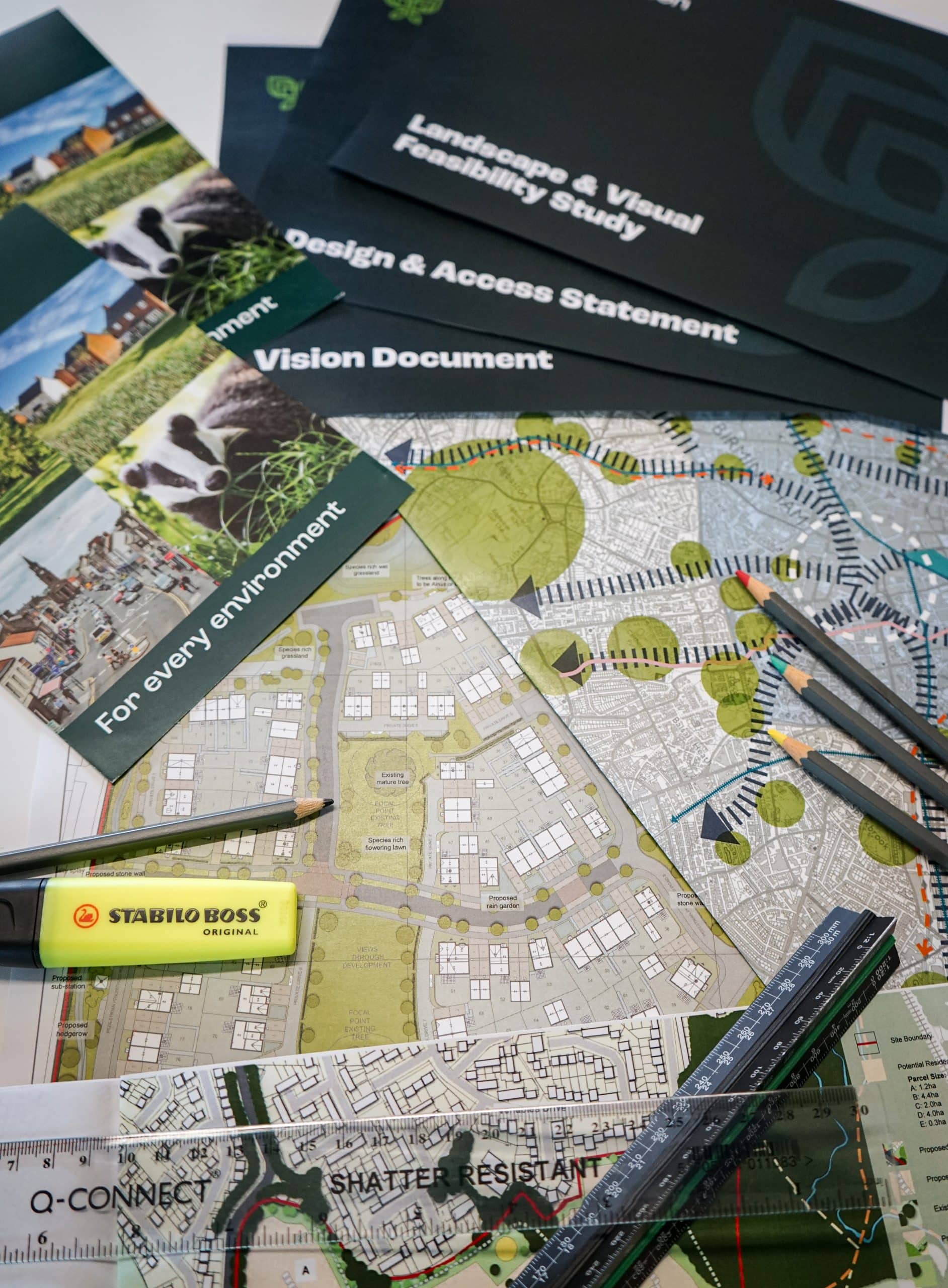

An illustrative masterplan is a plan that shows visually the potential of what can be achieved on a site within the parameters and principles of the development proposal. It will show the potential layout of a scheme taking into account existing baseline conditions, whilst maximising the opportunities through green infrastructure and well thought out design.
